Printed Installation Guide, pickup screw tubing, black screws,
treble/cut pot, vol. pot, mini switch
• AlNiCo V pole pieces
• Shielded 4-conductor cable
TheHybrid 5 & TheHybrid 5 EB:
• available as lefthand version
TheHybrid 5 only:
• available with white covers

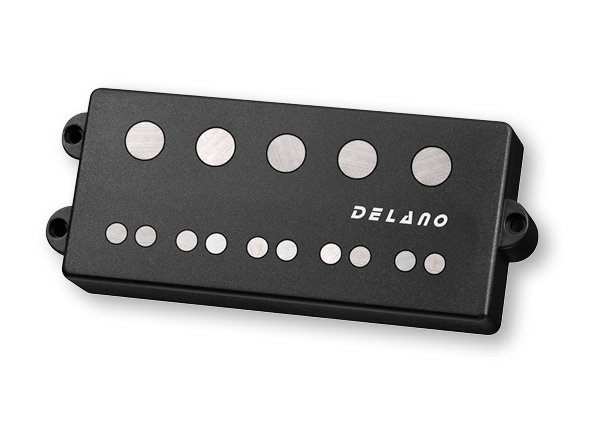

An uncompromising pickup series that combines in one single construction the two most legendary sounds in bass history!
Part 1: J-Bass® – Single coil bridge pickup with the immortal characteristics of early 60’s pickups. AlNiCo V magnets, classic fibre bobbin and gauge 42 wire.
Part 2: Sting Ray® Humbucker – Low resistance neck coil with 9.5 millimetre AlNiCo V magnets. Authentic sound is guaranteed in this setting too, thanks to the specially engineered bridge J-coil: the second MM®-coil is integrated inside.

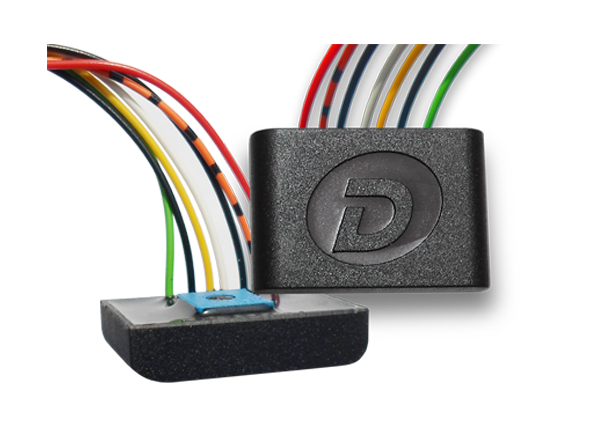

The integrated switch manager lets you get both of these great classic sounds at the touch of a toggle, each one reconstructed exactly in its original form with all its strengths and nuances of character: Passive function in single-coil mode, active function with the DELANO SONAR 2- or 3-band preamp activated in Humbucker mode. The internal switching of the pickup is lightning fast, too! For maximum sound authenticity we recommend the custom neck version of our J®-single coil JC 5 AL/H for the neck position. With both pickups switched on, this JJ-arrangement typically produces a noise-free output.
No trouble with treble:
The ’Hybrid’ set includes a specially designed treble pot that works as a typical passive tone control for the J®-sounds in the passive mode and doubles as the active treble EQ in the Sting Ray® setting. The neutral setting is located conveniently in the middle position; when switching, it’s easy to get the basic settings you need.
